Description

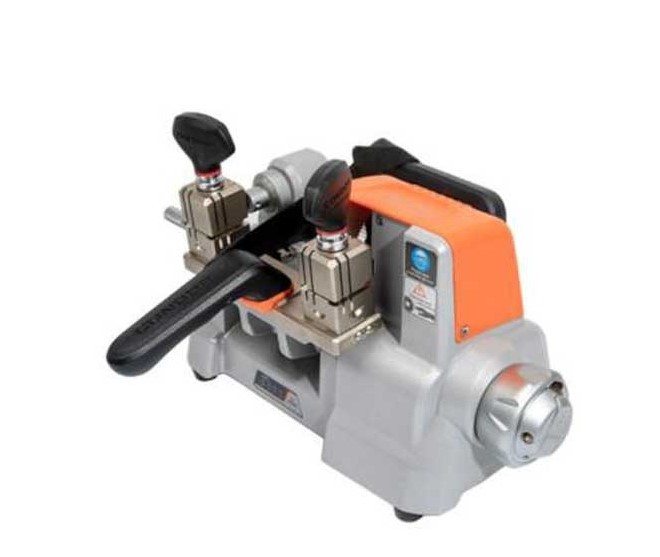

Xhorse Condor XC-009 is a heavy-duty performance key duplicating machine designed to cut standard single-sided keys and double-sided keys.
Battery-powered (should cut between 60 and 100 keys per charge)
Lighter weight, portable
Two configurations with multiple options
Four directions fixture to switch freely
Better design with a more beautiful outlook
Condor XC-009 Clamp cutting surface selection:
Clamps A, B, C, D on all sides, different types of keys according to the above image to select the appropriate clamping surface or reference appendix.
Battery:
In one single charge, XC-009 can cut up to 60-100 keys.
Condor XC-009 Features:
Advantage:
Small volume, lightweight, easy to carry.
High Precision:
With adapters guide equipment, guarantee high cut precision.
Wide Applicability:
Equipped with 4-side clamp, flexible exchange among 4-side. Different sides for different features keys, cut kinds of special keys, wide applicability.
Safe & Low Noise:
Emergency switch is able to turn off the power in emergency and start the machine while it’s safe.
Low noise DC brushless motor.
Super Long Endurance Ability:
Build-in 2500mA battery cuts 60-100 keys continuously.
Solid & Durable:
Aluminum structure, processed by DMG precise machine which is imported from Germany.
Humanized Design:
Battery value remind function, hidden hand wheel, big clamp space, cut the big plastic cover keys that don’t need to tear down, streamline handrail design, comfortable operation experience.
Condor XC-009 Specifications:
Input Voltage 90-264V AC
Input Frequency 47-63Hz
Consume 110W
Power Parameter 12-18V DC /3A
Battery Capacity 2600mAh/22.2V
Spindle Speed 900rpm
Motor Torque 1.2Nm
Clamp Spacing 95mm
Table Travel 46mm
Working Temperature 0-50℃
Humidity 10-90%
Net Weight 10.8kg
Gross Weight 14.0kg
Machine Dimensions 285mm*175mm*200mm
Packing Dimensions 420mm*310mm*300mm
Part: XC0900EN
Specifications
SKU
XH-XC009-WITH-BATTERY
Manufacturer
XHORSE
Categories
KEY CUTTING MACHINE
Condition
BRAND NEW
