Description
SPECIFICATIONS
Supported keys:
EDGE Cut Keys
DIMPLE Keys
CRUCIFORM Keys
LASER Keys
TIBBE Keys
SIMPLEX Keys
Jaws Included*:
A02 and A03 jaws – high security
C30 jaw – dimple
AV12 Adaptor for Ford
Optional Jaws (sold separately)**
C25 jaw – for engraving
A04 jaw – for older Mercedes, Chrysler, etc
*Edge cut keys are cut on the left side
*Jaws for Cruciform or Simplex keys are not available in US market

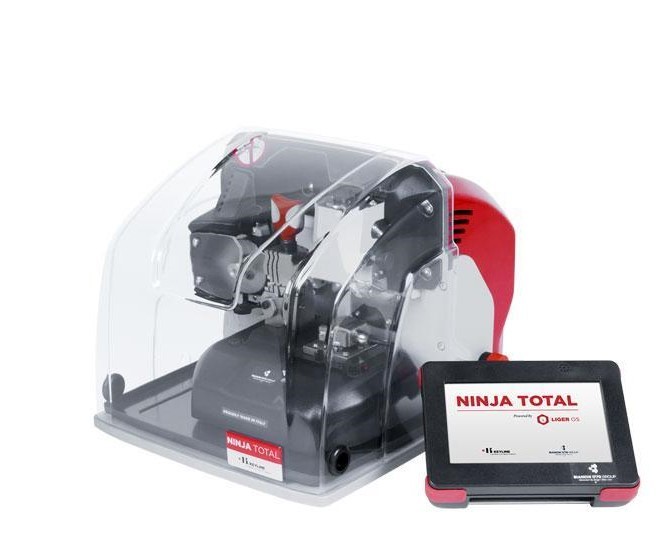

The Ninja Total is the ideal machine for locksmiths who want to offer a key cutting service with a complete and high-performing tool.
Versatile and complete. The combination of two key-cutting stations makes it possible to cut both residential and car keys, with a single machine, quickly and easily, without sacrificing quality and precision during the cutting process. Ninja Total is available with the optional engraving function for the head of the keys, through the dedicated C25 clamp.
Quick and performing. The high-quality technology based on the combined action of three axes and two powerful motors allows the key cutting in a single pass, speeding up machine performance.
New clamp. Ninja Total is equipped with the new, exclusive C30 clamp for the majority of dimple and laser keys, and with a large set of small milling cutters to cut the most popular keys.
Ergonomic and sturdy. Easy to handle and use, thanks to its wide operating station, Ninja Total is the ideal tool in all situations, for all jobs and environments.
Easy and intuitive. The advanced Liger Software developed by Keyline makes Ninja Total easy to use through an intuitive user interface, supported by a strong and stable industrial console which allows quick access to one of the most complete key databases in the market.
Patented technology. Innovation and quality are guaranteed by extensive international protection: Patent for Utility Model for the double cutting station and Patent pending for the sliding reading group.
TECHNICAL SPECS:
POWER SUPPLY: 110V 50-60Hz / 220-240V 50-60Hz
ABSORPTION: 250W (35W in standby)
GAUGE EDGE CUT KEY SIDE: Automatic gauge unlock through the movement of the axes
EXTERNAL CONNECTIONS: 2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
DIMENSIONS: Width: 15″/ Depth: 17″ / Height: 13″
ELECTRONIC EQUIPMENT: Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high-resolution axes control
CUTTER: EDGE CUT KEY SIDE 63 mm carbide cutter LASER KEY SIDE: 2.5mm cutter
LIGHTING: 2 LED STRIPS – lighted cutting bay
CLAMPS: EDGE CUT KEY SIDE: 4 sided LASER/DIMPLE KEY SIDE: A02, A03, C30
MOTOR: EDGE CUT KEY SIDE: Asynchronous, 0.18 KW LASER KEY SIDE: DC electronic motor
MOVEMENTS/AXES: 3 stepper motor-operated axes
WEIGHT: 65 lbs.
KEY READING SYSTEMS: EDGE CUT KEY SIDE: mechanical tracer with linear sensor LASER, DIMPLE KEY SIDE: electric contact
CUTTER SPEED: EDGE CUT KEY SIDE: 1500-3000 rpm (variable speed according to the programs) DIMPLE KEY AND LASER KEY SIDE: 13,000 rpm
NINJA TOTAL VIDEOS
Decode and Cut of Automotive Laser Keys
Decode, Cut and Engraving of the Head of Dimple Keys
Cut by copy of edge cut Automotive Keys
Specifications
SKU
KL-NINJA-TOTAL
Manufacturer
KEYLINE USA
Categories
KEY CUTTING MACHINE
Condition
BRAND NEW
