Description

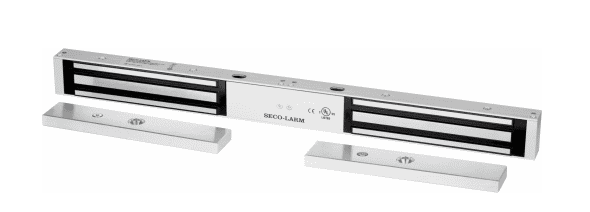

E-941DA-600Q
Anodized aluminum housing (US 28)
12 or 24 VDC (selectable)
No residual magnetism
Adjustable mounting bracket
MOV surge protection
Complete mounting hardware for typical installations
"L", "Z" and "U" brackets available for easy mounting
Detachable face plate
UL and ULC listed
CE listed
RoHS compliant
Holding Force 600-lb (272kg) per door
Operating Voltage 12 or 24 VDC ±10%
Current Draw 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total)
Operating Temperature 14º~131º F (-10º~55º C)
Certification UL, ULC, CE
Electromagnet Dimensions 19-11/16" x 1-5/8" x 1-1/16" (500x40x26 mm)
RoHS Compliance Yes
Armature Dimensions 7-1/4"x1/2"x1-1/2" (185x12x38 mm)
Case Shipping Weight 46-lb (21kg)
Weight 9-lb (4kg)
Specifications
SKU
50072
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
E-941DA-600Q
