Description
SA-025Q

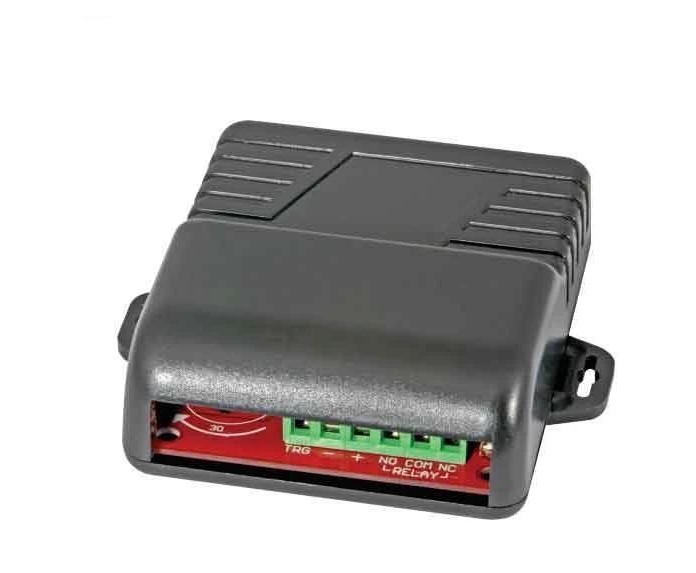

The ENFORCER® SA-025Q Multi-Purpose Programmable Timer with Protective Case is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells. DIP switches for programming and auto-sensing of input voltage make installation easy.
Timer can be set from 1 second to 60 minutes
Protective case:
---- Protects the product from the environment
---- Prevents dust and dirt build up
---- Makes product easier to mount
---- Easy to hide and protect the terminal
---- Dimensions: 3-1/4”x2-11/16”x1-1/16” (83x68x27.5 mm)
Can be triggered by positive voltage (+DC), or closure or opening of dry contact
Relay can be programmed to activate at the start or at the end of the timing cycle
Relay can also be set to activate for one second at the end of the timing cycle
Programmable for pulse (flash) activation
Built-in reset function to manually reset timing cycle
Form C relay, contacts rated 8A@120VAC/24VDC
LED indicates relay is energized
12VDC/24VDC Operation (auto sensing)
Current: 1mA (standby), 50mA (active)

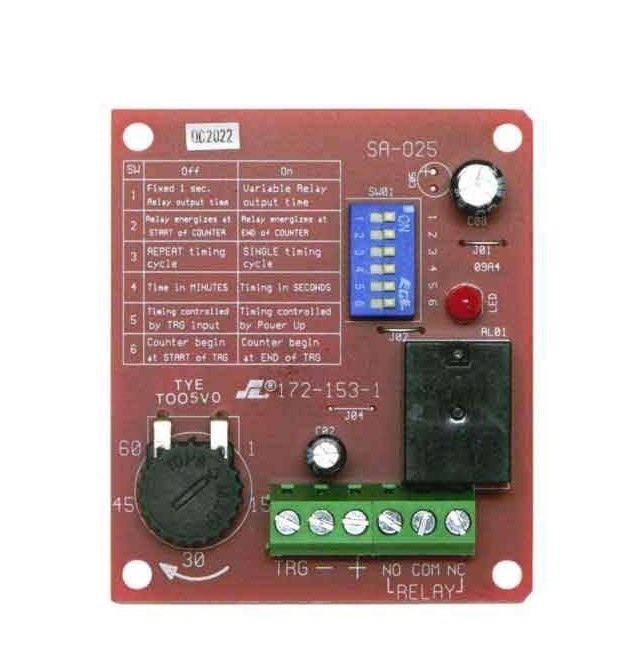

Board measures 27/8" x 21/2" (73x63 mm)
Functions programmed via DIP switches – no jumpers to cut
Operating Voltage: 12VDC/24VDC (auto sensing)
Relay Rating: Form C relay, contacts rated 8A@120VAC / 24VDC
Current Draw - Active 50mA
Current Draw - Standby 1mA
Dimensions: 2-7/8" x 2-1/2" (73 x 63 mm) Board measurements
Specifications
SKU
50068
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
SA-025Q
