Description

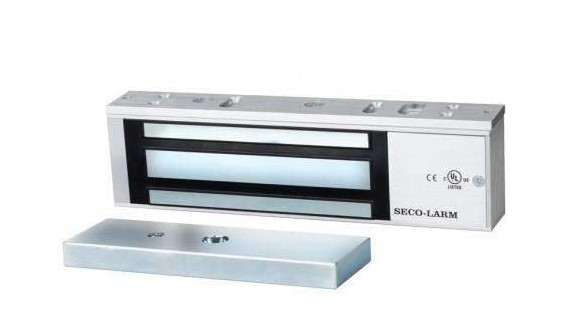

E-941SA-1K2PQ
Anodized aluminum housing (US 28)
12 or 24 VDC (selectable)
No residual magnetism
Adjustable mounting bracket
MOV surge protection
Complete mounting hardware for typical installations
Detachable face plate
Bond sensor output: 3A@12VDC
Built-in dual-color status LED and bond sensor to show locking status:
Green - Door is closed and locked
Red - Door not closed and/or locked
Off - Door in use / no power
Holding Force: 1,200-lb (545kg)
Operating Voltage: 12 or 24 VDC±10%
Current Draw: 500mA@12VDC, 250mA@24VDC
Operating Temperature: 14º ~ 131º F (-10º ~ 55º C)
Electromagnet Dimensions: 10-1/2"x1-5/8"x2-5/8" (268x42x67 mm)
Armature Dimensions: 7-1/4"x5/8"x2-3/8" (185x16x61 mm)
Weight: 11-lb (5kg)
Bond Sensor: Yes
Status LED: Yes
Specifications
SKU
50061
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
E-941SA-1K2PQ
