Description

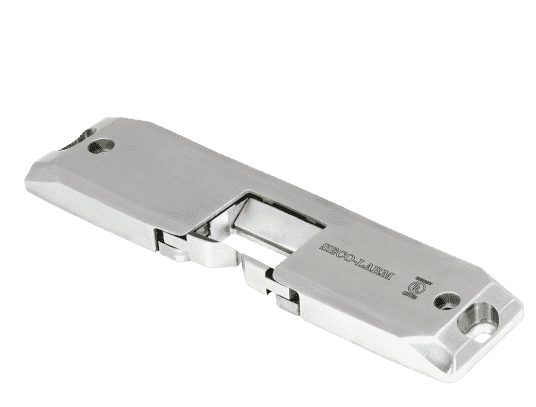

SD-998C-NUAQ The SECO-LARM SD-998C-NUAQ Surface-Mount Electric Rim Strike is designed for rim exit devices with a throw Pullman latchbolt. The strike features selectable fail-safe/fail-secure operation, 12/24 VDC operating voltage, horizontal adjustment, and a thick surface-mount metal housing which eliminates frame cutting when installing 12/24 VDC Operating voltage Horizontal adjustment Accommodates up to 3/4" Pullman latch Reversible non-handed design fits most door frames Surface-mount installation on metal or wooden door frames Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A, SD-962AR-36G Static strength: 1,500-lb (680kg) Tested for 250,000 cycles (UL Tested) Low current draw: 540mA@12VDC, 270mA@ 24VDC Dynamic strength: 70 lb-ft (9.68 kg-m) Field-selectable for fail-safe or fail-secure operation Spacers included: 1/16", 2 x 1/8" Five-year limited warranty Operating Voltage 12/24 VDC Current Draw 12VDC : 540mA, 24VDC : 270mA Static Strength 1,500-lb Dynamic strength 70 ft-lbs. (9.68 m-kgs) Endurance 250,000 cycles (UL Tested) Operating Temperature 14°~113° F (-10°~45° C) Operating Humidity 0~95% Dimensions 8"x1-3/4"x1/2" (203x45x13 mm)Specifications
SKU50057ManufacturerSECO-LARMCategoriesDOOR FORTIFICATIONConditionBRAND NEWModelSD-998C-NUAQ - SECO-LARM - 315MHZ PENDANT RF TRANSMITTER W/ 1 BUTTON - 1 CHANNEL
