Description

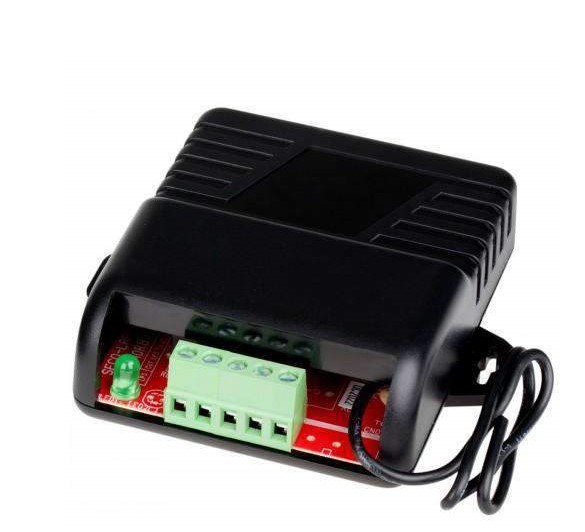

SK-910RBQ
Compatible with all ENFORCER 315MHz transmitters
Use to control garage door opener, house lights, alarm control panel, or other devices via remote control
10A @ 24VDC per channel, NO/NC/COM
Frequency 315MHz
This revolutionary receiver incorporates:
Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
HIGHER SENSITIVITY for greater operating distances.
UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
LED indicates RF reception, learn mode entered, transmitter learned, memory cleared
Mode switch for easy transmitter learning
Learns up to 15 transmitters
5 Output modes (programmable):
-- 4-Second momentary,
-- 1-Second momentary,
-- Toggle,
-- Validity: receiver outputs for as long as the transmitter button is pressed,
-- Latch
Screw terminals for simple connection
Accepts ENFORCER fixed code or CODEBUMP™ transmitters
Type: WIRELESS - Single-Channel RF Receiver
Operating voltage: 11~24 VAC/VDC
Range: Up to 500' (150m) with SECO-LARM transmitter. Range will vary.
Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
Extended Range Antenna Compatible: Yes (SK-91ERSD)
Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
Dimensions: 3-1/8" x 2-9/16" x 1" (80 x 65 x 25 mm)
Specifications
SKU
50053
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
SK-910RBQ
