Description
SA-026Q

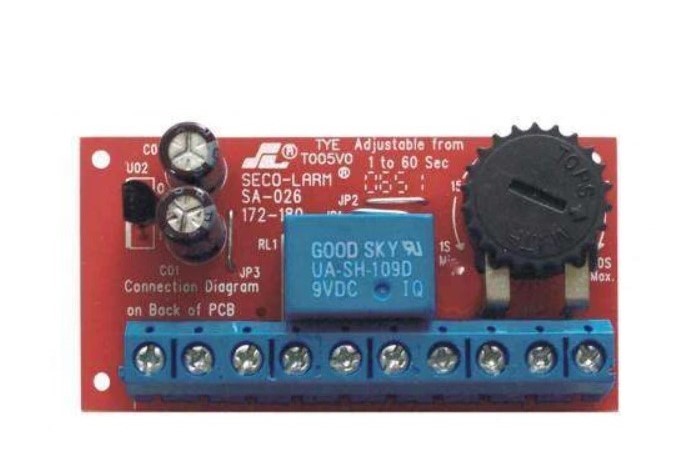

The ENFORCER® SA-026Q is a low-voltage miniature delay timer module which operates on 12 to 24 volts AC or DC. This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable rotary pot. Use with electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity.
Adjustable timer from 1~180 seconds via a pot on board
NO/NC switch trigger
Compact design: 13/16"x29/32"x5/8" (30x58x16 mm)
Operating voltage: 12~24 volts AC or DC
Current: 2mA (standby), 75mA (active)
Relay output: Form-C (SPDT) via terminal blocks
Contact rating: 3A@24VDC
With built-in buzzer output (100mA@24VDC)
Includes double-sided foam tape
Operating Voltage: 12~24 VAC or VDC
Relay Rating: Form-C (SPDT) via terminal blocks, 3A@24VDC
Current Draw - Active 75mA
Current Draw - Standby 2mA
Dimensions: 1-3/16" x 2-9/32" x 5/8" (30 x 58 x 16 mm)
Specifications
SKU
50036
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
SA-026Q
