Description

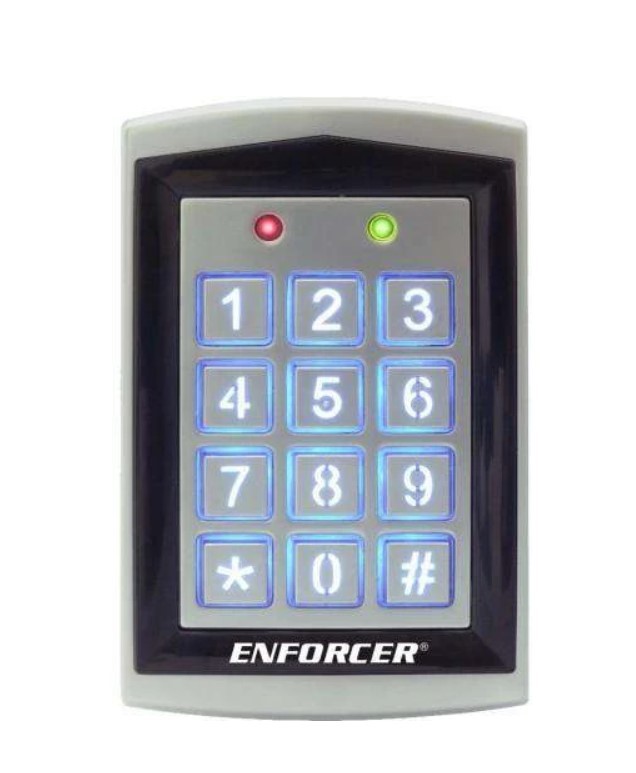

SK-1323-SPQ
12~24 VAC/VDC operation
1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
2 Form C relays, each rated 1 Amp @ 30VDC
Each relay has programmable output time from 1~99 seconds or toggle
Output #2 can be programmed for use with a doorbell
2 Egress inputs and 1 door sensor input
Backlit keys for easy nighttime use
2 Multi-colored status LEDs
All features are programmed directly from the keypad - no need for an external programmer
EEPROM memory protects programmed information in case of power loss
Optical tamper sensor for added security
Circuitry is potted with epoxy for outdoor use
IP65 Weatherproof rating, rugged aluminum construction
Built-in proximity card reader
3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
Output #2 may have either a card or a code programmed for each user
Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of User Codes: Up to 1,010
Operating Voltage: 12~24 VAC/VDC
Current Draw - Standby: 64mA@12VDC
Current Draw- Active: 92-120 mA@12VDC
Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
Egress Inputs: 2, N.O. Ground
Door Sensor Input: N.C. Ground
Tamper Sensor: Optical
Proximity Reader Frequency: 125kHz
Keypad LED Life: 60,000 hours (over 6.8 years)
Proximity Reader Sensing Distance: 1-15/16" (50mm)
Operating Temperature: -4°~122° F (-20°~50° C)
Dimensions: 4-3/4"x3"x7/8" (120x76x22 mm)
Weight: 1-lb, 2-oz (510g)
Specifications
SKU
50016
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
SK-1323-SPQ
