SD-927PKC-NEQ

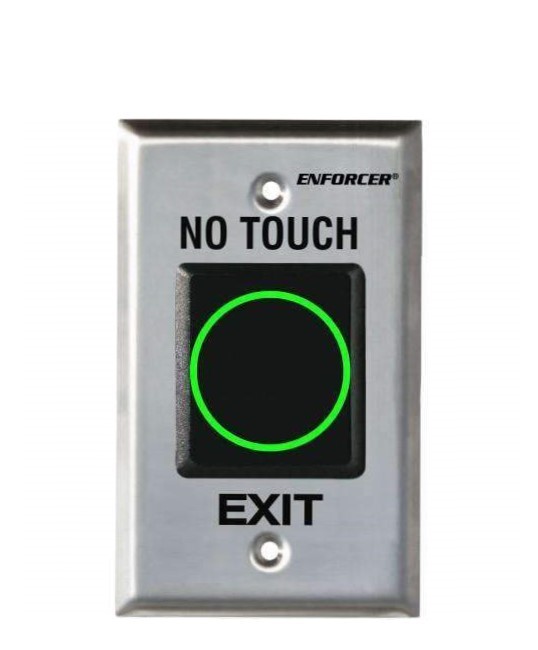

The ENFORCER No-Touch Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it is No-Touch, this sensor is ideal for use in hospitals, clinics, labs, clean rooms (to reduce the risk of contamination), schools, factories, or offices.
3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
Dual voltage, 12~24 VAC/VDC
Range adjustable from 2-3/8"-8" (6~20 cm)
Stainless steel single-gang plate
Quick connect screw-less terminal block
LED illuminated sensor area for easy identification
Selectable LED colors (turns from red to green or green to red) when activated
Type: No Touch Request-to-Exit Sensor Wall Plates
Current Draw: 120mA@12VDC
Sensing Range: Adjustable, 2-3/8"~8" (6-20 cm)
Operating Voltage: 12~24 VAC/VDC
Reaction time: 10mS
LEDs - Red: Standby
LEDs - Green: Triggered
Relay Type: Form C (NO/NC/COM) 3A@24VDC
Output Time: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
Operating Temperature: -4°~131° F (-20°~55° C)
Dimensions: 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm)
Weight: 3oz (85g)
Specifications
SKU
50012
Manufacturer
SECO-LARM
Categories
DOOR FORTIFICATION
Condition
BRAND NEW
Model
SD-927PKC-NEQ
