Description
PR-112S-A

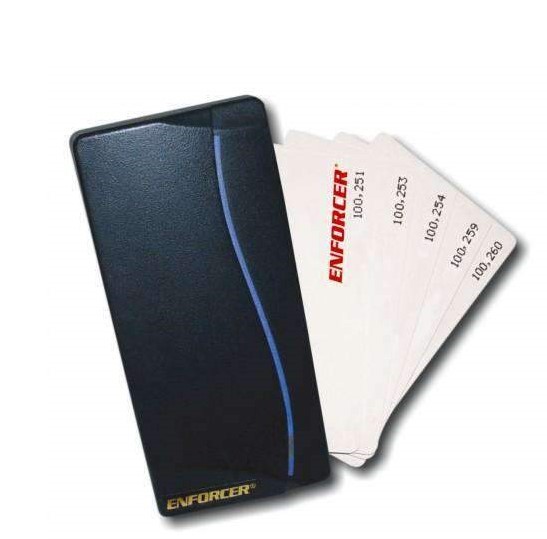

The new ENFORCER Proximity Reader provides an inexpensive, flexible solution for controlled access. The unit combines simple installation, quick programming, and high reliability.
Stand-alone Proximity Card Reader
Use in small businesses, homes, gates/parking structures, apartments and other locations
Sealed and weatherproof (IP67). Mounts easily to interior and exterior wall
Attractive tri-color wave shaped LEDs status bar indicates proximity reader's mode and status
Blue- On/Valid Card Indicator
Green- Programming Mode
Red- Invalid Card
Output relay for either time (1 to 180 seconds) or"Toggle" mode
Egress input to exit the protected area without using the proximity reader
Buzzer is programmable for audible confirmation or silent mode
Up to 100 user cards can be programmed
User cards easily deleted. Delete a single card, or all cards
Up to 5 "Master" cards can be programmed
10 Cards included
Operating Voltage:12VDC
Current Draw- Active: 200mA @ 12VDC
Current Draw- Standby: 80mA @ 12VDC
Transmit Frequency: 125kHz
User Card Read Range: 6" (15cm)
Master Card Limit: 5 cards
User Card Limit: 100 Cards
Output: 1 Relay (NO/NC/COM)
Contact Rating: 1A@30V
Relay Time Delay: 1~180 s / Toggle Mode
Operating Temperature: -4°~158° F (-20°~70° C)
IP Rating: IP67
Dimensions: 3-11/16"x1-3/4"x5/8" (95x44x17 mm)
Specifications
SKU
50011
Manufacturer
SECO-LARM
Categories
TOOLS & ACCESSORIES
Condition
BRAND NEW
Model
PR-112S-A
