Description
SPECIFICATIONS
- Power supply ; 90-130V 50-60Hz / 220-240V 50-60Hz
- User interface; 7” industrial colour touch screen, 16:10, resolution 800×480 px, incorporated CPU
- Electronic Equipment; Mainboard with CPU ARM Cortex A8, 256 MB RAM, NAND memory on 1 GB, high resolution axes control.
- External connections; 2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
- Key Reading/Decoding System; Electric contact
- Movements/Axes; 2 axes, guided by stepper motors through linear moves, interpolated through high precision ball screws
- Jaws; 7 clamps are available: A, B, C, D for laser keys; G for edge cut automotive keys; H for Tibbe keys (6 spaces), S for Simplex keys.
- Motor; Brushless
- Cutter; Widia ø 2.5 mm for laser and Tibbe keys / ø 1.5 mm for edge cut keys
- Cutter Speed; 6000 rpm
- Absorption; 125W (50W in stand-by)
- Dimensions; Width:11.8″; Depth:14″; Height:13.7″
- Weight; Machine body 36.3 lbs. / Console 1.7 lbs.

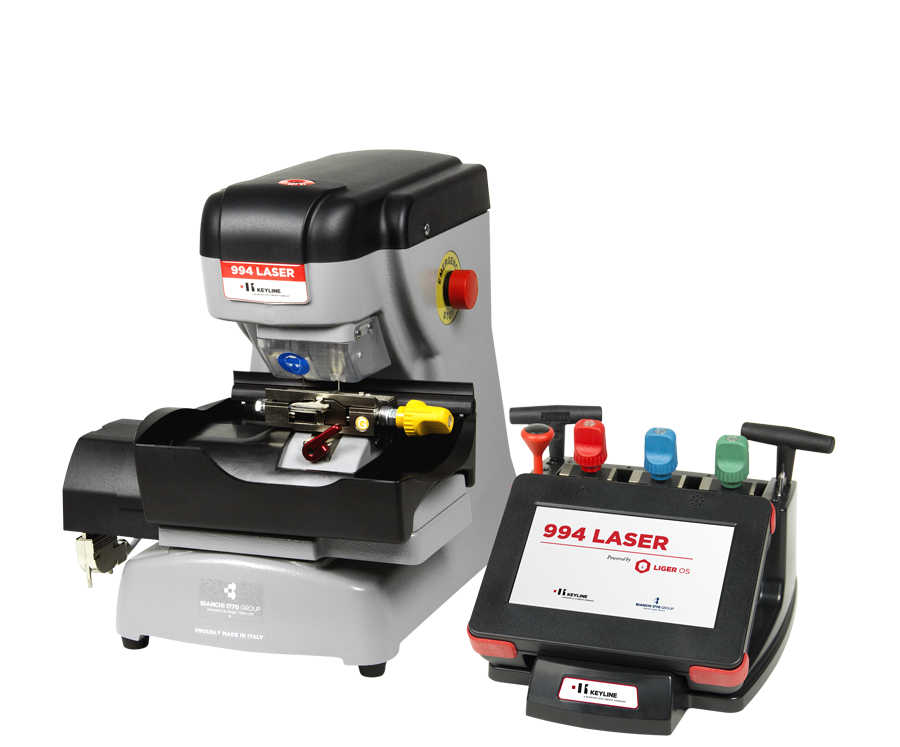

The 994 Laser is the most advanced electronic high security key cutting machine on the market. Featuring a touch screen console and stand alone unit – this is all you will need to cut high security keys by code.
- Cuts by code, decode or depths and duplicates high security keys
- Complete database of high security systems to be cut built-in; no computer needed
- Key information is automatically converted to original lock specification when duplicating
Electronic calibration
- Universal 2.5mm cutter used for all applications
- Ability to input cuts at 1/2 depths
- Includes GM & Ford high security and Lexus 80K code series
- Easily updated through Internet or with Smart Media technology
- Includes A & C jaws to cut most popular high security laser keys; B, D & G jaws available as optional equipment
- Vacuum attachment available separately
- Warranty: 3 years
- Includes Free 1 Year Subscription to Instacode
CLICK HERE FOR AN INTRO VIDEO
Specifications
SKU
KL-B994-NEW
Manufacturer
KEYLINE USA
Categories
KEY CUTTING MACHINE
Condition
BRAND NEW
