GMS 1-1/8 MORTISE CYLINDER 6-PIN, SA SARGENT LA US26D KEYED-ALIKE A2 AT CAM
Currently Out of Stock
Description

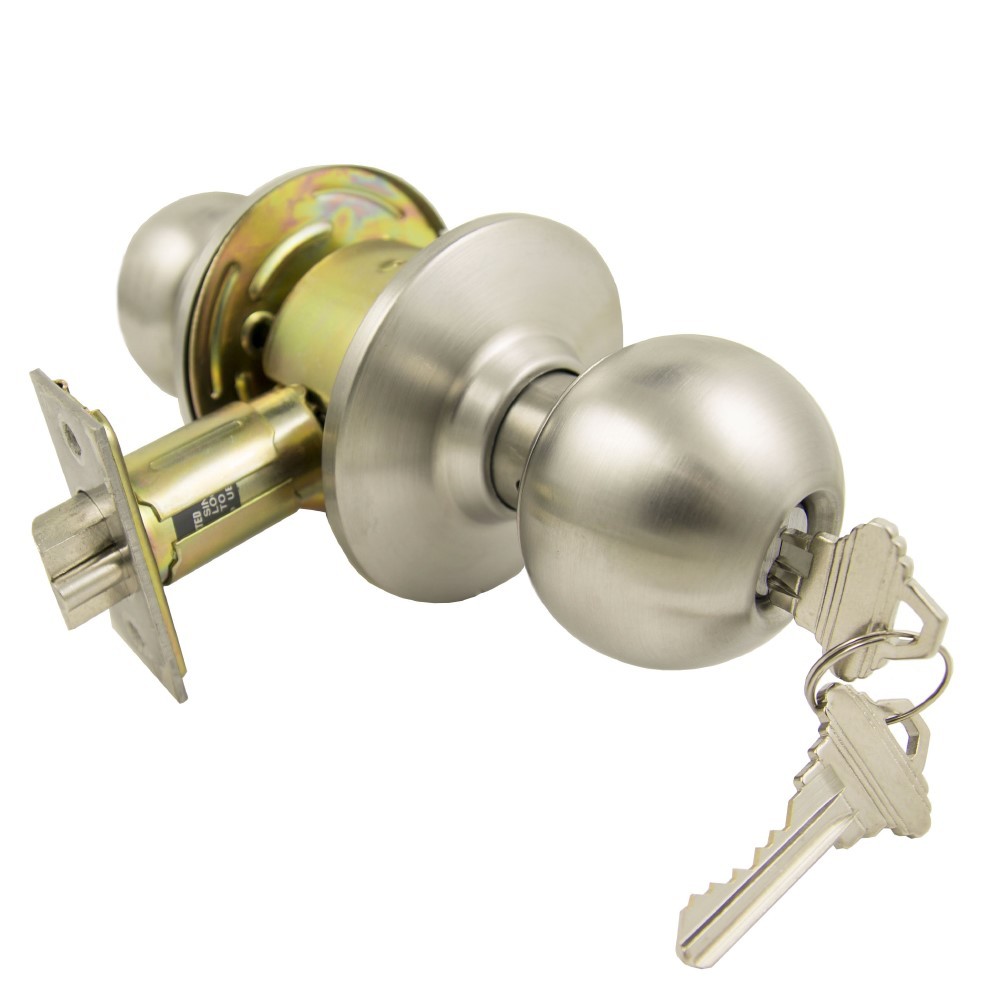

K2G K280N21 Grade 2 - Knob STR SC4 2-3/4" 32D - Storeroom
Heavy duty cast mounting plate with specially tapped holes keeps lockset tight on doors.
Cold rolled steel, and machined threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
Wide door range allows quick and easy adjustment for doors ranging from 1-3/8" to 1-3/4" thick
FUNCTION:
Storeroom
KNOB DESIGN:
Ball
STRIKE:
Standard T Strike
LATCH BOLT:
1/2" (13MM) throw solid brass, deadlocking on keyed and non-keyed function
CYLINDER:
6-pin solid brass "Schlage C" keyway standard with two brass keys per lock
DOOR THICKNESS:
For 1 3/8" to 1 3/4" thick doors.
BACKSET:
2-3/4" (70MM) standard or 2-3/8" (60mm) Optional Latch DL238 and SL238
FACE PLATE:
I-1/8" X 2-1/4" Square corner, beveled for 2-3/4" backset standard
ROSE DIAMETER:
75MM diameter
Certifications:
ANSI: Certified ANSI/BHMA Grade 2 Series 4000 (400,000 cycles) strength and operational requirements.
UL/cUL: UL listed to U.S.A and Canadian safety standards Listed for 3 Hour Doors.
Positive Pressure: meets UL 10C and UBC 7-2 (1997)
HANDING:
Keyed functions are reversible, Non-keyed functions are not handed
APPLICATIONS:
For Commercial, institutional and industrial use, such as schools, hospitals and factories, where a long life of dependable operation must be combined with a high degree of resistance to physical abuse.
Specifications
SKU
ADIR19
Manufacturer
ADIR LOCK & DOOR HARDWARE
Categories
ENTRY / EXIT DEVICES
Condition
BRAND NEW
Model
K280N21-KA
