Description

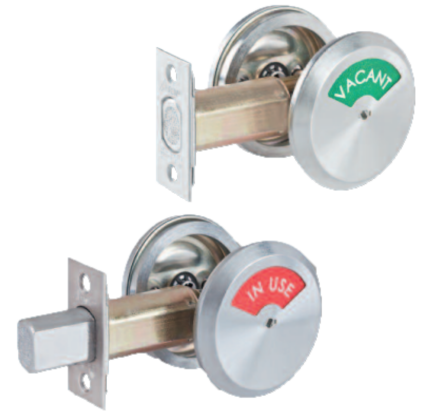

The Arrow Occupancy Indicator deadbolt, available on the E Series Grade 2 Arrow Deadbolt, provides privacy control by utilizing a large external viewing window that signals when the room is occupied. The Arrow Occupancy Indicator uses an emergency key override to unlock the door from the outside in case of emergency. When the deadbolt is in the locked position, an external slot is exposed that provides for the use of the override key. When this key is used, the key is captured in the deadbolt and cannot be removed until the deadbolt is retracted or turned to the "In Use" or unlocked position. This product is ideal for use in restroom facilities and other areas requiring visual notification of use and secured privacy.
Features
Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.
Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset: 2-3/4" (69.85 mm)
Deadbolt fronts: 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.
Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
Strikes: Supplied standard with #346 security strike for metal frame.
Handing: All functions are reversible.
Emergency Key: The deadbolt can be unlocked from the outside with an emergency key.
Specifications
SKU
10055
Manufacturer
ARROW LOCK & DOOR HARDWARE
Categories
LOCKS
Condition
BRAND NEW
Model
XE50-03
